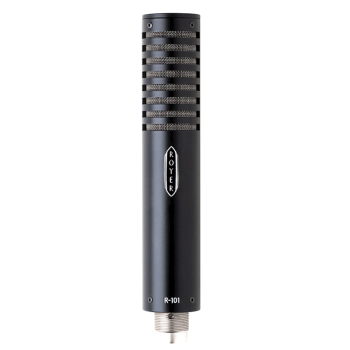

Royer R-101 Mono Ribbon Microphone

Key Features:

• High SPL capabilities for electric guitar and percussion
• Multilayered windscreen provides superior protection to ribbon element
• No internal electronics to overload or produce distortion up to maximum SPL rating
• Extremely low residual noise
• Ribbon element not affected by heat or humidity
• Absence of high-frequency peaks, ringing, and phase shifts
• Equal sensitivity from front or back of element
• Acoustic operating principle: Electrodynamic pressure gradient
• Polar pattern: Figure-8
• Generating element: 2.5-micron aluminum ribbon
• Magnets: Rare-earth neodymium
• Frequency response: 30-15,000Hz ( /- 3dB)
• Sensitivity: -48dB (re. 1v/pa)
• Output impedance: 300 ohms at 1kHz (nominal)
• Rated load impedance: 1,500 ohms (or greater)
• SPL handling: Greater than 135dB at 30Hz
• Output connector: Male XLR 3-pin (pin 2 hot)
