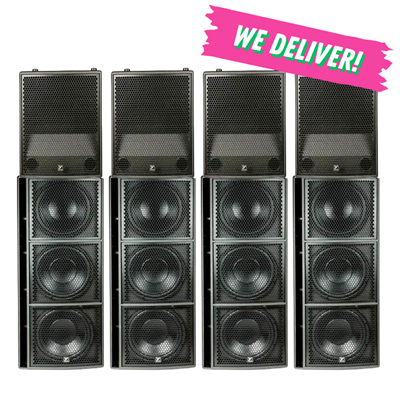

Yorkville Synergy Array Series Full Rig

Request to Rent

SA153 Key Features

• Top Box for the Synergy Array Series System
• 3-way full-range powered speaker: 2600 watts (program), 5000 watts (peak)
• 1 x 15-inch LF woofer, 1 x MF/HF Co-ax Compression Driver
• Incorporates Tom Danley's patented Paraline Lens and Synergy Horn technologies
• Exceptionally high output and pristine clarity
• Simple and secure rigging hardware
• Extremely well controlled coverage pattern
• Measured MAX SPL (C-Weighted, Max Hold): 131dB continuous, 137dB Peak
• Frequency Response (Hz +/- 3db): 55Hz-18K
• Dispersion (°H x °V): 22.5° x 45° (Asymmetrical 10° Up, 35° Down)
• Audio Inputs: 1 XLR, 2 x XLR Loops
• AC Connections: 1 In, 1 Loop (Locking Powercon)
• Dimensions (DWH x backW, inches): 24 x 21 x 26.5 x 12.25
• Made in Canada

SA315S Key Features

• Bottom half of the Dynamic Duo of the Synergy Array Series System
• Bass Reflex Powered Subwoofer: 6500 watts (program), 13,000 watts (peak)
• 3 x 15-inch LF woofers with 3-inch voice coils
Exceptionally high output and deep bass
• Simple and secure rigging hardware
• Measured MAX SPL (C-Weighted, Max Hold): 130dB continuous, 136dB Peak
• Frequency Response (Hz +/- 3db): 31Hz-100Hz
• Crossover Frequency (Hz): 100 Hz low-pass
• Dimensions (DWH x backW, inches): 24 x 21 x 51.5 x 12.25
• Made in Canada

System comes with 6 SADOLLY1 for easy transport
