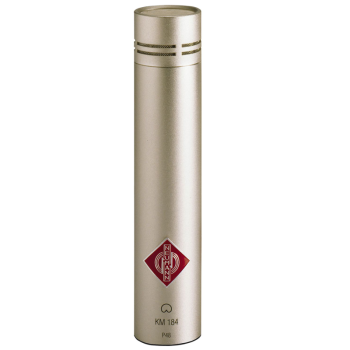

Neumann KM184 Small Diaphragm Cardioid Condenser Microphone

$22 / Weekend $44 / Month

Key Features:

  • Small-diaphragm condenser mic
  • Of the "fet 100" series with a transformerless microphone circuit
  • Capsule with cardiod pick-up pattern
  • Exceptionally low inherent self-noise (16dB A-weighted)
  • Exceptionally high overload capacity (up to 138dB SPL before overload)
  • Exceptionally clear sound reproduction free of coloration
  • Very smooth frequency curves parallel to 0 degrees sound incidence
  • 20Hz to 20kHz frequency range
  • Equivalent loudness level due to inherent noise: 16dB (DIN/IEC 651 dB-A), 25dB (CCIR 468-3 weighted)
  • S/N ratio re:1Pa @ 1kHz, (CCIR 468-3 weighted) 69dB (S/N = 94dB - equiv. noise) A-weighted: 78dB
  • Max SPL for less than 0.5% THD: 138dB
  • Total dynamic range of the microphone amplifier (Max SPL-self noise): 122dB
  • Requires +44V to +52V phantom power
